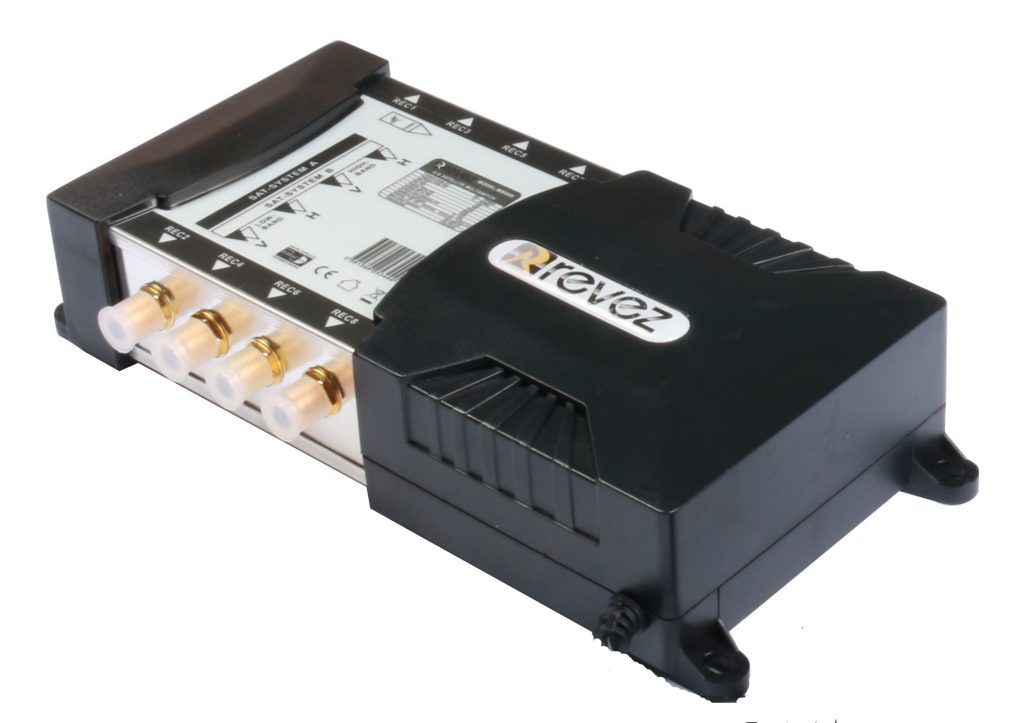

DESCRIPTION of 9 x 8 Satellite & Terrestrial Multiswitch REVEZ 9 x 8 Multiswitch Inputs: 9 Horizontal High (22 KHz) Horizontal low Vertical High  (22 KHz) Vertical Low Terrestrial Outputs: 8 satellite & terrestrial feeds Frequencies: Frequency Range: 47 ~ 2200 MHz Attenuation: 0 dB (Sat), 16 dB (Terr) Isolation: 30 dB (Sat)  Output Level (Terr): max. 95 dBµV Output Level (Sat): max. 95 dBµV Power Supply: 230V 50Hz DC Voltage: 13V / 18V DC Power (LNB): 1A (max) DC Power (12V): Ʃ 300mA (max) Note: Always used with Quattro LNB Used extensively in Hotels Apartment blocks Retirement villages HOW the 9 x 8 Satellite & Terrestrial MultiSwitch Works Quattro Vs Traditional LNB Traditional LNB which simply feeds a Satellite receiver from each output Quattro LNB splits the satellite signal into Vertical (High & Low) Horizontal (High & Low) This allows the signal to to feed to an infinite amount of Satellite points How a Quattro LNB and Multiswitch work Used in conjunction with a Quattro LNB (normally mounted on an 80cm dish) whose 4 outputs are broken into Vertical (High & Low) Horizontal (High & Low) Multiswitch inputs: Satellite: 8 from 2x satellite quattro LNBs Terresttial: a single feed covering full VHF / UHF Spectrum  Multiswitch range: Outputs: 8, 16 or 32 outputs to Satellite receivers At the TV Point: Use a Faceplate to split the signal into Satellite and terrestrial
